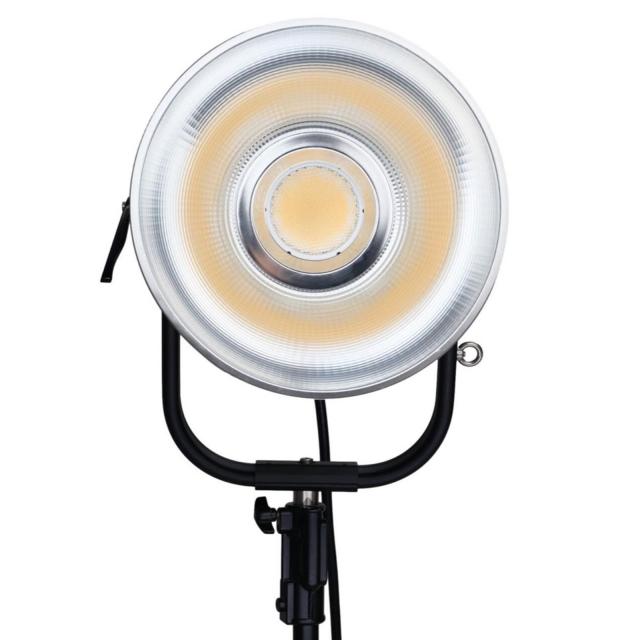

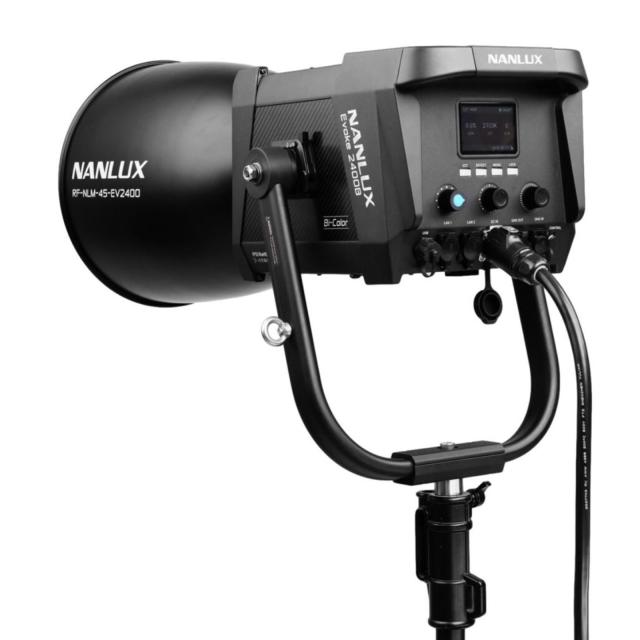

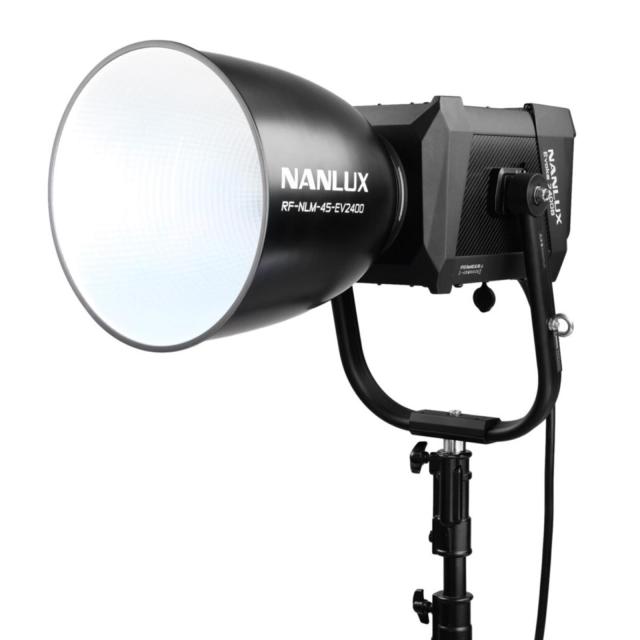

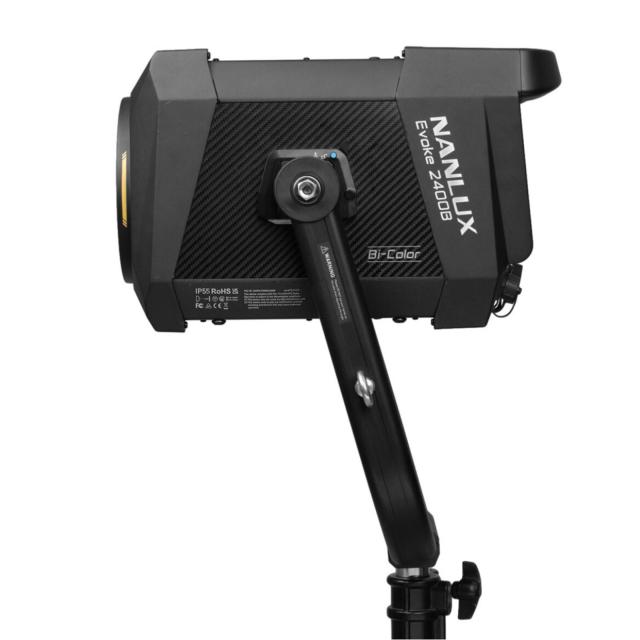

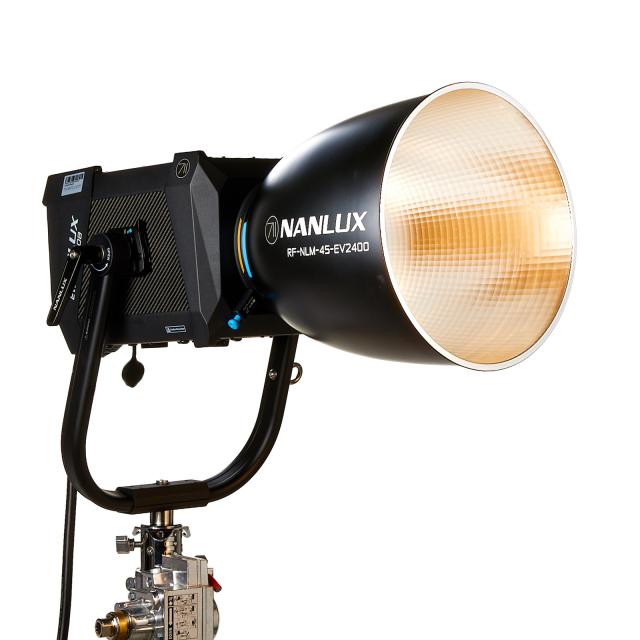

Nanlux Evoke 2400B Set
Nanlux Evoke 2400B Set
Nanlux Evoke 2400B Set
Nanlux Evoke 2400B Set
Nanlux Evoke 2400B Set
Nanlux Evoke 2400B Set
Nanlux Evoke 2400B Set
Nanlux Evoke 2400B Set
Nanlux Evoke 2400B Set
Prices per day excluding vat. Vat will be charged according local law.

1 Day 2 Days 3 Days 4 Days 5 Days 6 Days 7 Days

The Nanlux Evoke 2400B is the brightest bicolor Lightsource on the market. The BicolorLed System can be tuned from 2700°K up to 6500°K. At 3200°K its brighter than a 5k Tungsten. In 5600°K it can replace a 4KW Frensnel HMI in brightness. Its fully compatible with all our Nanlux- mount soft lightshapers the Lanterns and Softboxes. The Reflectors are a Special design with electric connectors to the Lamp. The Fresnel will get aother update and will be available soon. Since its weather-proof (IP54) design its ideal for outdoor use. It can be powered by an instagrid, and Ecoflow Delta Pro anywhere. The Evoke 2400B comes with a small remote control, but also can be operated using the Nanlink app. DMX and Lumenradio is also available. The Nanlux Evoke 2400B is a high-performance, bi-color LED monolight designed for professional use in photography and filmmaking. Below are its technical specifications: Color Temperature Range: The Evoke 2400B offers a wide color temperature range from 2700K to 6500K, making it suitable for various lighting conditions and creative needs​ Color Rendering Index (CRI) and Television Lighting Consistency Index (TLCI): It boasts a high CRI of 96 and a TLCI of 97, ensuring accurate color rendering, which is crucial for capturing true-to-life images and videos​ ​​Power and Brightness: This monolight is an AC-powered, ultra-bright LED spotlight, delivering a 2400W equivalent output. It can produce over 300,000 lux at 1 meter using the standard NL mount 45-degree reflector, making it comparable to a 4K HMI Fresnel in terms of power and brightness​ Beam Angle and Dimming: The Evoke 2400B features a 100° open-face beam angle and offers 0-100% dimming capabilities, providing significant flexibility in controlling the intensity and spread of the light​ Green/Magenta (G/M) Tint Adjustment: It includes +/- 80 G/M tint adjustment, allowing for more consistent color in various environments and when using other manufacturers' fixtures​ ​​Control and Connectivity: The monolight supports AC power, onboard controls, DMX, Bluetooth, and app control, offering multiple ways to adjust and control the lighting according to the user's preferences​ Weatherproofing: It is rated IP55 for weatherproofing, making it suitable for use in challenging outdoor conditions​ Mounting and Accessories Compatibility: The Evoke 2400B features a compact housing suitable for hanging and adjusting almost anywhere on set. It is compatible with various NL mount accessories​ In summary, the Nanlux Evoke 2400B is designed for versatility, robust performance, and high-quality lighting output, catering to the demanding requirements of professional photography and film/TV production.

  • CCT range of 2700K - 6500K with G/M +/- 80 adjustment
  • up to 41,910 lux at 3 m (at 5600 K with 45° reflector)
  • CRI value: 96
  • TLCI value: 97
  • TM-30 Rf: 95
  • TM-30 Rg: 100
  • SSI (Tungsten: 84
  • SSI (D56): 74
  • Various control options via on-board control on the luminaire,
  • via remote control, via Bluetooth via NANLINK app, DMX/RDM, LumenRadio CRMX, Art-Net/sACN and wired control
  • 12 built-in effects
  • Four fan modes: Smart, Full Speed, Low Speed ​​and Off
  • Dimmable from 100% to 0% in 0.1% steps
  • Compatible with NL-Mount accessories
  • Firmware updates via USB port on the light

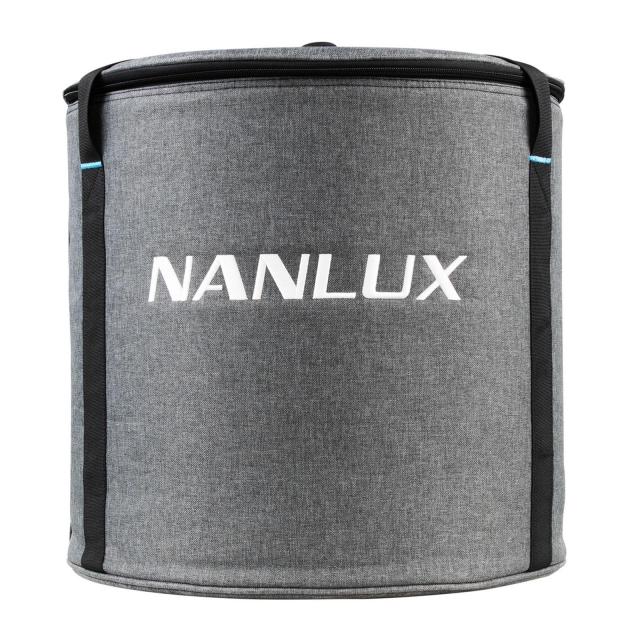

  • including small flight case (only for the light, without reflector)
Detail Value
Type of Lightsource spot
Color Engine Bi-Color
Powersupply (A) Household 16AH
Power Consumption (W) 2400
App for remote operation Nanlink
Lumenradio build in CRMX build in
Kelvin minimal 2700
IP Rating IP55
Kelvin maximal 6500
