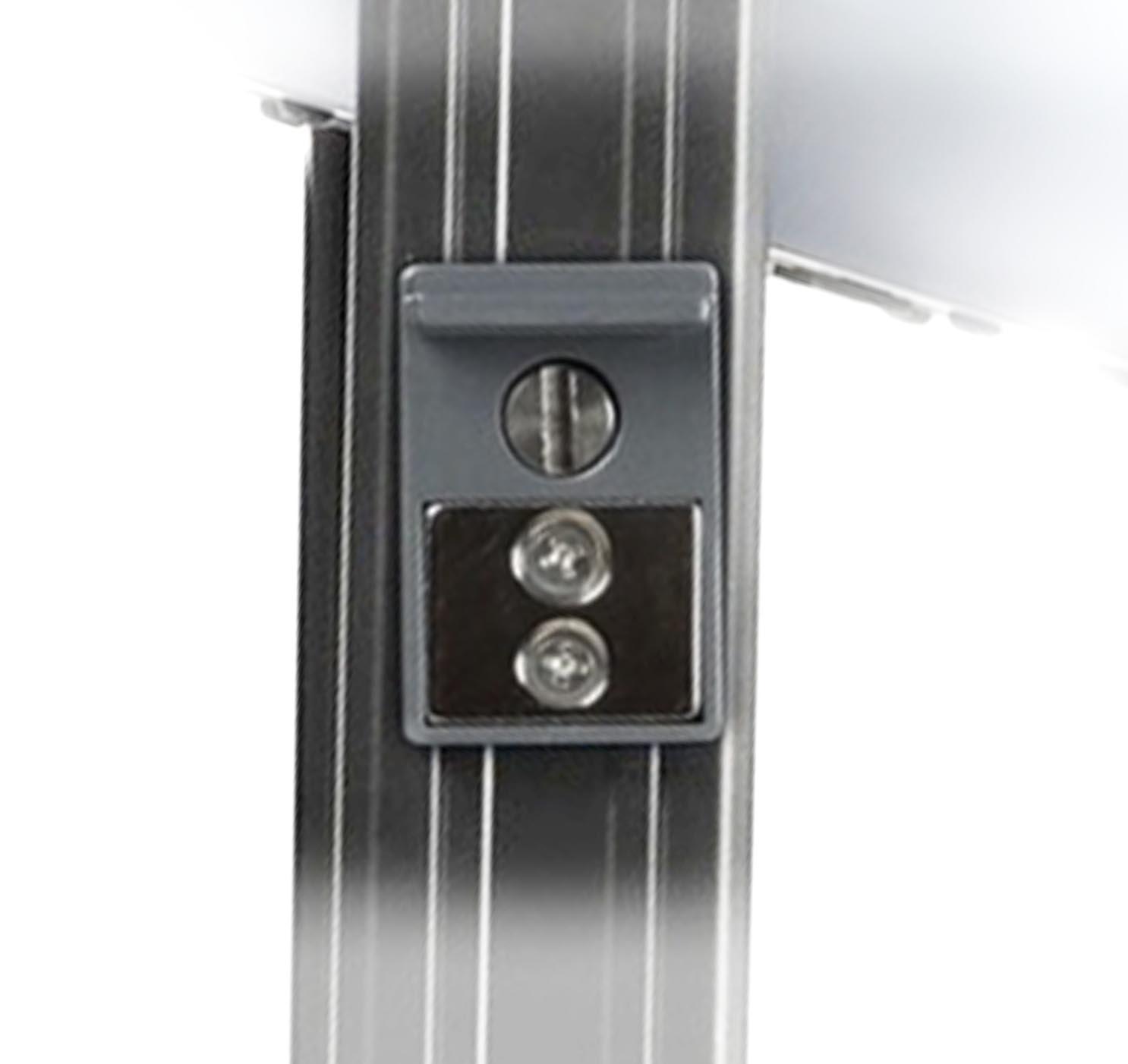

Check out the Nanlux Evoke 150C! Versatile Accessory Compatibility The fixture is designed with the new FE mount (with electronic contacts), and compatible with FM mount accessory ecosystem, allowing users to continue using most of their existing FM mount accessories. NANLUX has also developed motorized accessories for Evoke 150C, such as the motorized yoke* and the motorized Fresnel lens (FL-12E), enabling precise light control when fixtures are mounted at height, rigged overhead, or positioned in hard-to-reach locations. To meet the needs of fixed mounting, a 5/8" Baby Pin with Quick Release Plate (AS-BP-QRS) is included in the kit, which can be directly attached to the quick-release base on the side of the fixture, allowing the fixture to be easily mounted anywhere on set. Evoke Lineup With the addition of the Evoke 150C, the Evoke lineup now includes daylight, bi-color, color fixtures, with power ratings up to 5000W - one family of lights providing multiple solutions for professional production. The same operation logic allows users to operate different fixtures without spending time readjusting. FE, BE, and NL mounts together constitute a comprehensive accessory ecosystem, enabling different fixtures to have versatile light-shaping options. Built for demanding shooting environments, all Evoke lights combine metal construction with IP ratings, reflecting professional engineering. Within the Evoke system, the Evoke 150C blends naturally into the workflow, integrating with other lights in the series to streamline and unify on-set lighting.
- Full-color LED spotlight with Nebula C8 light engine
- CCT 1.000–20.000 K, G/M-Tuning ±200
- CRI: 96
- TLCI: 97
- TN-30 Rf: 96
- TM-30 Rg: 100
- SSI (3200 K): 86
- SSI (5600 K): 78
- up to 22,230 lux at 1 meter (5600 K, 45° reflector)
- up to 10,200 lux at 1 meter (green, 45° reflector)
- All-in-one design for quick assembly
- Protection class IP66
- Linear dimming 0 – 100 % in 0.1 % steps
- FE-Mount with electronic contacts, compatible with the FE-Mount accessories
- IP66 protection against dust and heavy rainwater
- Compact and mobile for on-location use
- Multiple operating modes including CCT, HSI, RGBW, XY, Gel & FX effects
- Control: On-board, DMX/RDM via optional DMX extension adapter (AS-EXT-DMX), LumenRadio CRMX, NANLINK app via Bluetooth, wired controller
- Art-Net/sACN - Control via Ethernet using the optional LAN Extension Adapter (AS-EXT-LAN)
- NFC functionality
- 15 FX effects: HUE LOOP, CCT LOOP, INT LOOP, lightning, pulsation, storm, police car, TV, candle/fire, paparazzi, disco, broken light bulb, fireworks, explosion and welding
- Efficient cooling system with 5 fan modes: Smart, Full Speed, Low Speed, Off, Pause
| Detail | Value |
|---|---|
| Color Engine | Nebula C8:dRRALGCBI |
| CRI | 98 |
| Kelvin minimal | 1000 |
| Kelvin maximal | 20000 |
| Power Consumption (W) | 150 |
| App for remote operation | Nanlink |
| Type of Lightsource | spot |
| IP Rating | IP67 |
| Lumenradio build in | CRMX build in |
| Power Supply | 48VDC |
| Powersupply (A) | Household 16AH |
| Lightshaper mount | Nanlux FE mount (electrified Mini Bowens) |
