DZO Vespid Prime Set of 7 EF

< Back to List
DZO Vespid Prime Set of 7 EF
330,00 €
Prices per day excluding vat. Vat will be charged according local law.

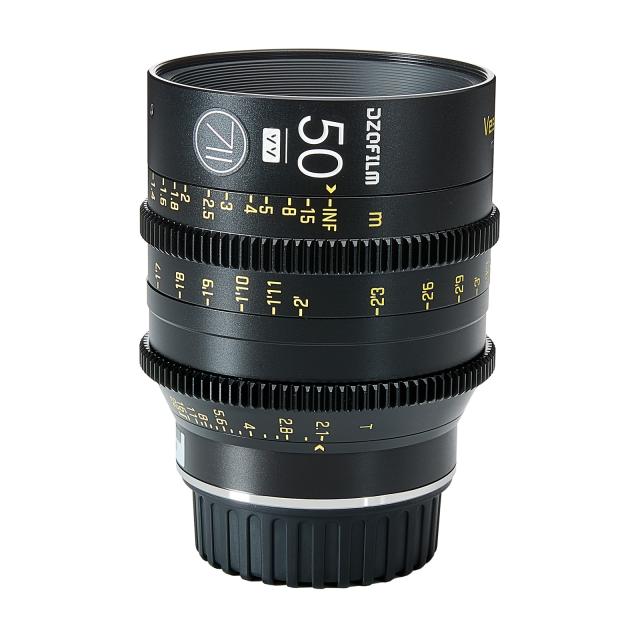

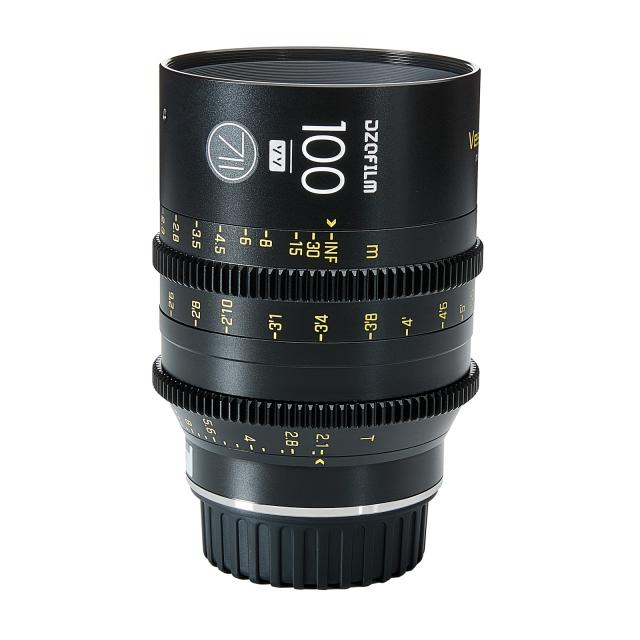

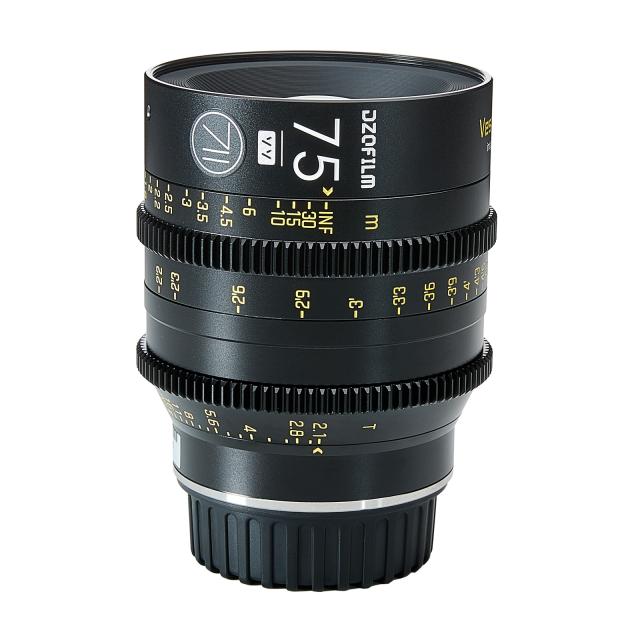

Our DZO Vespid Prime Set (25/35/50/75/90/100/125) EF contains 7 fullframe cine optics from DZOFilm. The Vespid series is characterised by a compact design. We also added the new 16mm vespit to our stock. It can be rented separately. Technical data (25mm): - Sensor format: 35 mm - Fixed focal length: 25 mm - Front diameter: 80 mm - Filter diameter: 77 mm - Minimum focusing distance: 30 cm - Maximum aperture: T2.1 - T22 - Aperture blades: 16 - Angle: 270° focus pull angle - Image circle: 46.5 mm - Toothing: Standard M0.8 toothing, suitable for cine drives - Dimensions (DxL): 80 x 100 mm - Weight: 940 g Technical data (35mm): - Sensor format: 35 mm - Fixed focal length: 25 mm - Front diameter: 80 mm - Filter diameter: 77 mm - Minimum focusing distance: 30 cm - Maximum aperture: T2.1 - T22 - Aperture blades: 16 - Angle: 270° focus pull angle - Image circle: 46.5 mm - Toothing: Standard M0.8 toothing, suitable for cine drives - Dimensions (DxL): 80 x 87 mm - Weight: 834 g Technical data (50mm): - Sensor format: 35 mm - Fixed focal length: 50 mm - Front diameter: 80 mm - Filter diameter: 77 mm - Minimum focusing distance: 37 cm - Maximum aperture: T2.1 - T22 - Aperture blades: 16 - Angle: 270° focus pull angle - Image circle: 46.5 mm - Toothing: Standard M0.8 toothing, suitable for cine drives - Dimensions (DxL): 80 x 87 mm - Weight: 732 g Technical data (75mm): - Sensor format: 35 mm - Fixed focal length: 75 mm - Front diameter: 80 mm - Filter diameter: 77 mm - Minimum focusing distance: 60 cm - Maximum aperture: T2.1 - T22 - Aperture blades: 16 - Angle: 270° focus pull angle - Image circle: 46.5 mm - Toothing: Standard M0.8 toothing, suitable for cine drives - Dimensions (DxL): 80 x 87 mm - Weight: 865 g Technical data (90mm): - Sensor format: 35 mm - Fixed focal length: 90 mm - Front diameter: 80 mm - Filter diameter: 77 mm - Minimum focusing distance: 258 cm - Maximum aperture: T2.8 - T22 - Aperture blades: 16 - Angle: 300° focus pull angle - Image circle: 46.5 mm - Toothing: Standard M0.8 toothing, suitable for cine drives - Dimensions (DxL): 80 x 112 mm - Weight: 800 g Technical data (100mm): - Sensor format: 35 mm - Fixed focal length: 100 mm - Front diameter: 80 mm - Filter diameter: 77 mm - Minimum focusing distance: 70 cm - Maximum aperture: T2.1 - T22 - Aperture blades: 16 - Angle: 270° focus pull angle - Image circle: 46.5 mm - Toothing: Standard M0.8 toothing, suitable for cine drives - Dimensions (DxL): 80 x 100 mm - Weight: 890 g Technical data (125mm): - Sensor format: 35 mm - Fixed focal length: 125 mm - Front diameter: 80 mm - Filter diameter: 77 mm - Minimum focusing distance: 79 cm - Maximum aperture: T2.1 - T22 - Aperture blades: 16 - Angle: 270° focus pull angle - Image circle: 46.5 mm - Toothing: Standard M0.8 toothing, suitable for cine drives - Dimensions (DxL): 80 x 100 mm - Weight: 924 g

  • T2.1 for 25/35/50/75/100/125mm focal lengh

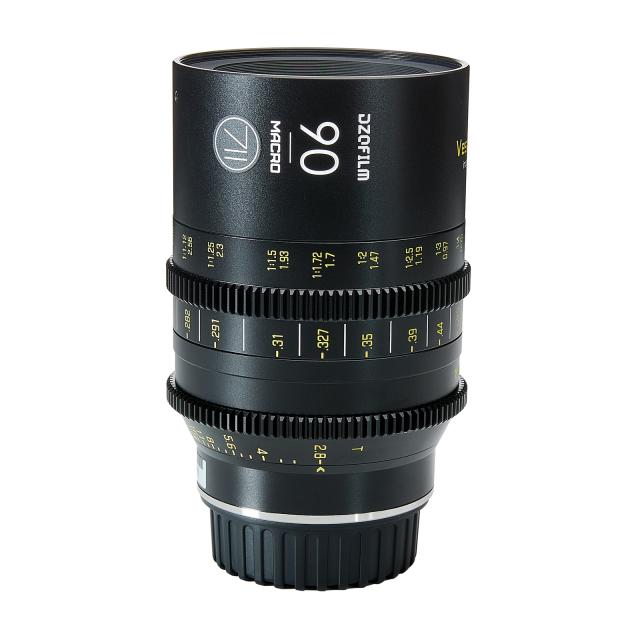

  • T2.8 for 1:1.5 Macro 90mm focal lengh
  • 46.5mm image circle
  • Minimal breathing during focussing
  • Uniform front diameter, making swapping out lenses easier Lenses are all metal with a solid build
  • 16 blades diaphragm resulting in a pleasant round Bokeh
  • Compact and lightweighted
  • Metric and imperial scale are indicated on all T2.1 lenses
  • Separate metric and imperial scale versions for all T2.8 Macro 90 mm lenses
Detail Value
Focal length (mm)
Focal length END (mm)
Lensmount EF
Aperture 2.1-2.8
Filter diameter (mm) 77
Lenses in Set choose 7 of 16-21-25-35-40-50-75-90-100-125mm
Front diameter (mm) 80
Closest Focuspoint (m)
Image circle Full-Frame
Anamorphic ratio
