Der Nanlux Evoke 5000B ist ein 5000W Bi-Color LED-Scheinwerfer mit variabler Farbtemperatur von 2700–6500K und ±80 Green/Magenta-Feinabstimmung. Er liefert bis zu 555.250 Lux bei 1 m (5600K) und bietet CRI 97 / TLCI 98. Mit IP66-Zertifizierung, integriertem Nebula B4 Light Engine, 12 Effekten und vielseitigen Steueroptionen (DMX, CRMX, App) ist er ideal für Film- und TV-Produktionen.
- 5000W Bi-Color LED Monolight
- Color Temperature: 2700K to 6500K
- ±80 Green/Magenta Adjustment
- Output at 1 m (5600K, 45° reflector): 555,250 lux
- Output at 5 m (5600K, 45° reflector): 22,210 lux
- Beam Angle: 95° (bare), 45° (with reflector)
- CRI: 97
- TLCI: 98
- TM-30 Rf/Rg: 96/102
- SSI: 85 (3200K), 74 (5600K)
- Dimming: 0.1% to 100%, adjustable in 0.1% steps
- Flicker-free up to 10,000 fps
- 12 built-in customizable lighting effects
- Control: Onboard (3 knobs, 4 buttons, 4.3" screen), Wired controller, Nanlink App, LumenRadio CRMX, Bluetooth, DMX/RDM (5-pin XLR), Art-Net/sACN (RJ45)
- Input Voltage: 100–240 VAC, 50/60 Hz
- Max Power Consumption: 5200W
- Cooling Modes: Smart (44 dB), Full Speed, Low Speed, Pause, Off
- Housing: High-strength magnesium alloy
- Weight (without yoke): 43.12 kg / 95.06 lb
- Mount: 1-1/8" stud with yoke
- IP66 certified (dust- and water-resistant)
- NL mount with PosiTight system

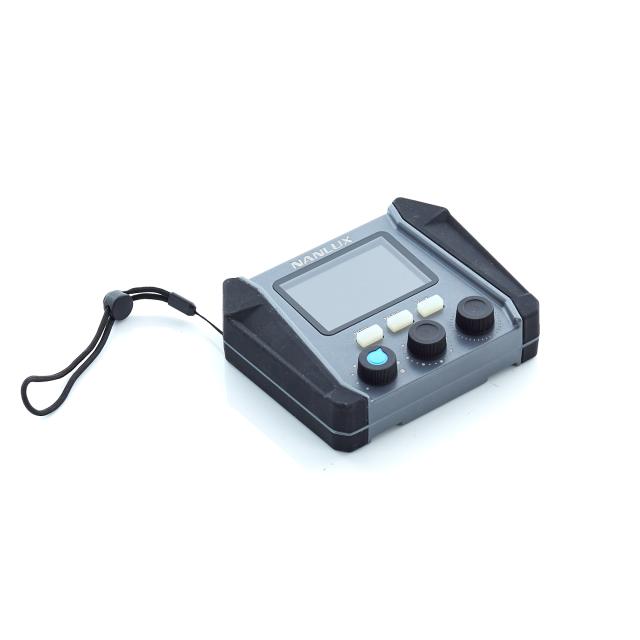

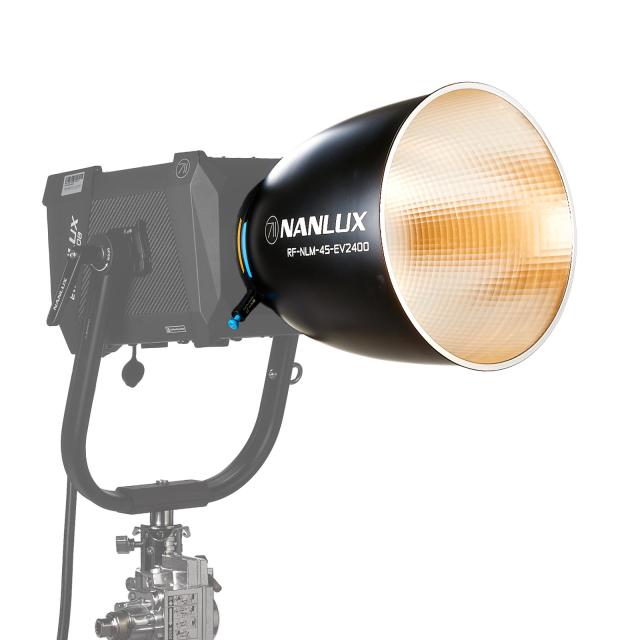

- Included: Reflector, yoke, AC cable, USB drive, wired controller
- Compatible with NL mount accessories (e.g. Fresnel, softbox)
| Detail | Value |
|---|---|
| Color Engine | Nebula B4 Bi-color + GM |
| CRI | 97 |
| Kelvin minimal | 2700 |
| Kelvin maximal | 6500 |
| Power Consumption (W) | 50000 |
| App for remote operation | Nanlink |
| Type of Lightsource | spot |
| IP Rating | IP66 |
| Lumenradio build in | CRMX build in |
| Powersupply (A) | 32AH |
