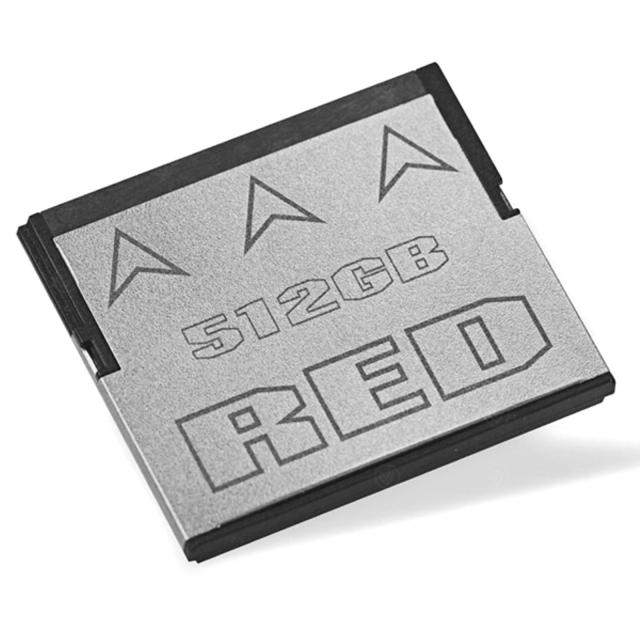

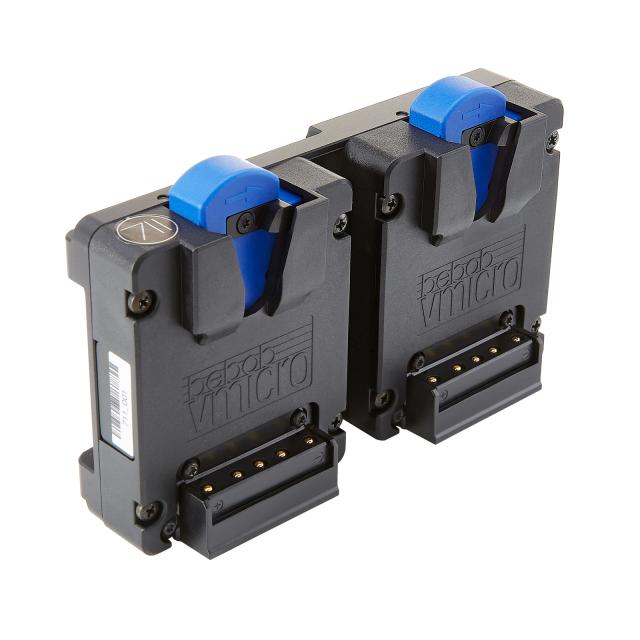

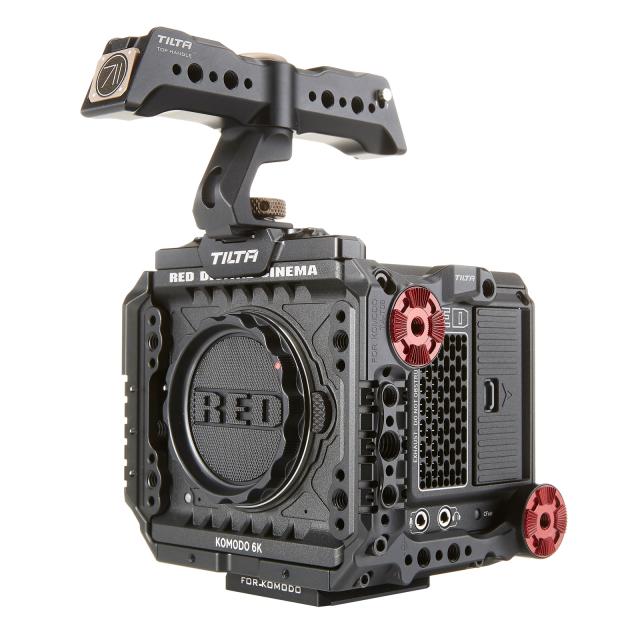

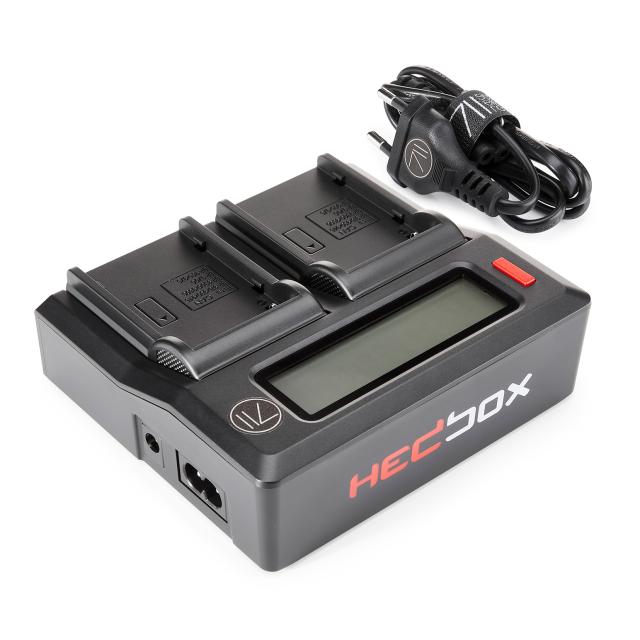

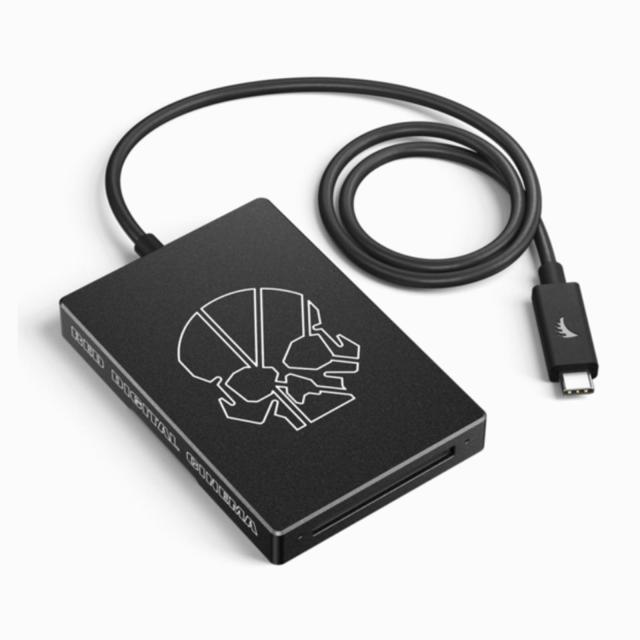

Nuestro kit de RED Komodo consta básicamente de todo lo que necesita para filmar, incluida de una lente. Jaula, baterías y por supuesto rapidas tarjetas de memoria incluidas. La Komodo es una cámara super 35 con obturador global de 6k y unas dimensiones reducidas que la hacen perfecta también para uso con gimbal. La cámara viene con una montura de lente Canon RF para disparar con la última generación de lentes Canon. Un adaptador para monturas Canon EF esta incluido en el kit. Además, podemos ofrecer un adaptador a PL cuando se dispara con lentes con montura PL. Los medios de almacenamiento incluidos son 2 tarjetas Cfast de 512 GB y un lector de tarjetas para USB-C o A. Además de las dos baterías Canon BP950 con cargador, el conjunto también incluye un adaptador para baterías V-mount, que proporciona tomas de corriente adicionales D-tap y Lemo.
- SENSOR TYPE: KOMODO® 19.9 MP Super 35mm Global Shutter CMOS
- EFFECTIVE PIXELS: 6144 x 3240
- SENSOR SIZE: 27.03 mm x 14.26 mm (Diagonal: 30.56mm) Super 35
- DYNAMIC RANGE: 16+ stops
- MOUNT TYPE: RF mount
- accepts Canon RF Mount Based Lenses and Adapters. Supports Canon EF with full electronic communication via compatible Canon RF Mount Adapters

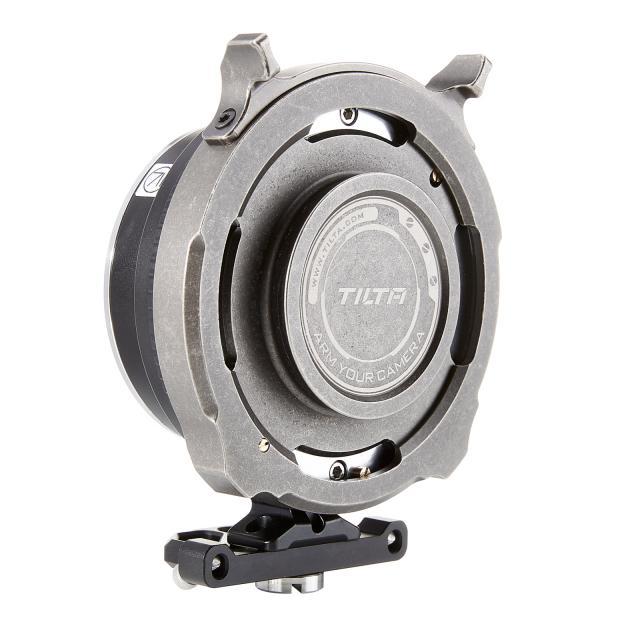

- Additional RF to PL Mount
- RF to EF mount with integrated variable ND
- MAX DATA RATES
- Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards
- REDCODE® RAW MAX FRAME RATES
- 40 fps at 6K 17:9 (6144 x 3240): (512GB/HQ/17min)
- 50 fps at 6K 2.4:1 (6144 x 2592): (512GB/HQ/18min)
- 48 fps at 5K 17:9 (5120 x 2700): (512GB/HQ/21min)
- 60 fps at 4K 17:9 (4096 x 2160): (512GB/HQ/26min)
- 120 fps at 2K 17:9 (2048 x 1080): (512GB/HQ/53min)
- PLAYBACK FRAME RATES (PROJECT TIME BASE)
- 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
- AVAILABLE REDCODE® SETTINGS
- REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240)
- up to 40 fps
- REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160)
- up to 60 fps
- REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080)
- up to 120 fps
- REDCODE® RAW ACQUISITION FORMATS2
- 6K 17:9 (6144 x 3240), 2.4:1 and 16:9
- 5K 17:9 (5120 x 2700)
- 4K 17:9 (4096 x 2160)
- 2K 17:9 (2048 x 1080)
- APPLE PRORES
- 4K (4096 × 2160) at ProRes 422 HQ (512GB/25fps/1h27min)
- and ProRes 422 (512GB/25fps/2h20min)
- up to 60 fps
- 2K (2048 × 1080) at ProRes 422 HQ (512GB/25fps/5h48min)
- and ProRes 422 (512GB/25fps/9h22min)
- up to 120 fps
- DC POWER INPUT
- +7 to +17 V DC via the integrated 2-pin DC-IN port
- AUDIO
- Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz. Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
- REMOTE CONTROL
- WiFi for camera control via interchangeable antenna with SMA connection Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port, Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed
- MONITOR OUTPUTS
- Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
- 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
- 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
- 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
- 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
- SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
- Approx Running Time with V-Mount 95WH
- 2 hours (depending on temperature and additional accessories)

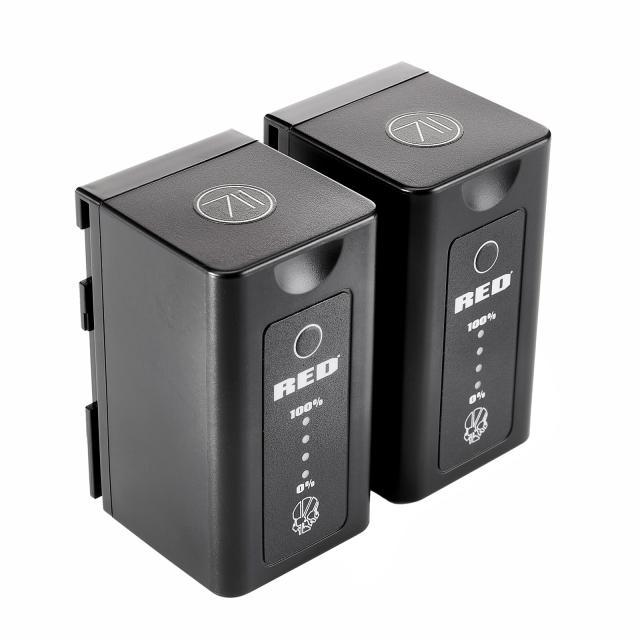

- Approx running time with 2x RED Volt
- 1,5 hours (depending on temperature and additional accessories)
- Maximal storage capacity (time)
- (e.g. 6K 16:9/25fps/RedRaw HQ/512 GB): 30 minutes
- Maximal storage capacity (time)
- (2K 17:9/25fps/ProRes 422/512 GB): 9hr 22 minutes
- Storage need for 1 hour shoot max.resolution
- (6k 16:9/25fps/RedRaw HQ): 1TB
- Storage need for 1 hour shoot min. Resolution
- (2k 17:9/25fps/ProRes 422): 54,57 GB
| Detail | Value |
|---|---|
| max. ISO | 12800 |
| Imagestabilizer | No |
| max. Framerate Video | 60 |
| Storage Medium | CFast |
| Sensor Size | Super 35 |
| Video Resolution | 6K |
| Output | Timecode |
| Camera Mount | PL |
| Native ISO | 800 |
| Global Shutter | Global Shutter |
